Part №: -

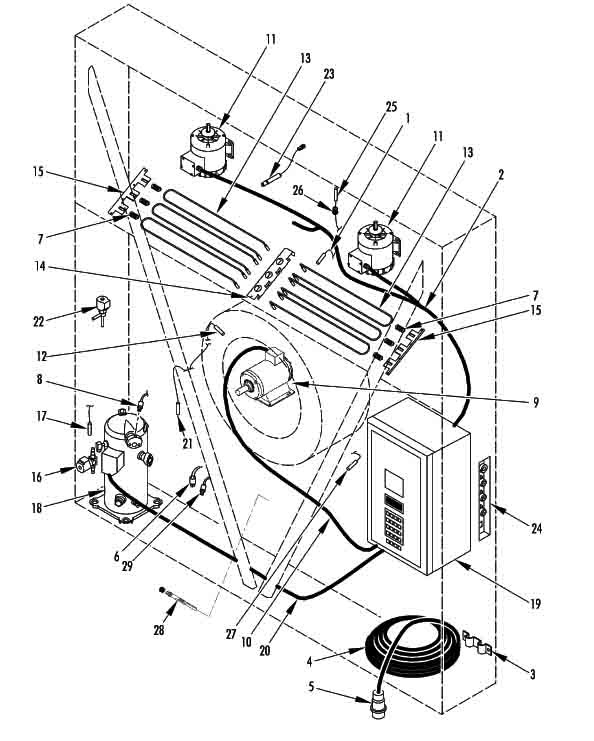

Оригинальное название: ELECTRICAL COMPONENTS
Количество: 1
Детали
| На схеме | Part № | Название | Кол-во | |
|---|---|---|---|---|
| 1 | 40-1044 | SENSOR - kit (defrost) (SENSOR - kit (defrost)) | A/R | заказать |
| 2 | 41-3685 | HARNESS - evaporator (see 235E9) (HARNESS - evaporator (see 235E9)) | 1 | заказать |
| 3 | 92-5546 | BRACKET - cable restraint (BRACKET - cable restraint) | 1 | заказать |
| - | 51-1445 | SCREW - bracket (SCREW - bracket) | 2 | заказать |
| - | 51-1446 | LOCKWASHER (LOCKWASHER) | 2 | заказать |
| - | 51-1441 | FLATWASHER (FLATWASHER) | 2 | заказать |
| - | 55-9054 | WASHER - insulator (WASHER - insulator) | 2 | заказать |
| 4 | 45-1992 | CABLE - power (19.2 meters, 63 ft, 11/4 ga) (CABLE - power (19.2 meters, 63 ft, 11/4 ga)) | 1 | заказать |
| 5 | 41-1976 | • PLUG - power (Minnekes) (• PLUG - power (Minnekes)) | 1 | заказать |
| - | 44-9891 | • TERMINAL - pin (• TERMINAL - pin) | 7 | заказать |
| - | 40-692 | KIT - Cable Splice (KIT - Cable Splice) | 1 | заказать |
| - | 45-1908 | CABLE (11/4, 250 ft roll) (CABLE (11/4, 250 ft roll)) | A/R | заказать |
| - | 45-2272 | CABLE (11/4, 1000 ft roll) (CABLE (11/4, 1000 ft roll)) | A/R | заказать |
| 6 | 41-4473 | SWITCH - lpco (SWITCH - lpco) | 1 | заказать |
| 7 | 91-8140 | SPRING - heater (SPRING - heater) | 6 | заказать |
| 8 | 41-4004 | SWITCH - hpco (SWITCH - hpco) | 1 | заказать |
| 9 | 104-759 | MOTOR - condenser fan (see 235E8) (MOTOR - condenser fan (see 235E8)) | 1 | заказать |
| 10 | 41-2953 | HARNESS - condenser fan (see 235E8) (HARNESS - condenser fan (see 235E8)) | 1 | заказать |
| 11 | 104-691 | MOTOR - evaporator fan (see 235E9) (MOTOR - evaporator fan (see 235E9)) | 2 | заказать |
| 12 | 40-1044 | SENSOR - kit (condenser coil) (SENSOR - kit (condenser coil)) | 1 | заказать |
| 13 | 45-1927 | HEATER (680W, 2 meter leads) (HEATER (680W, 2 meter leads)) | 6 | заказать |
| 14 | 91-8142 | BRACKET - heater (15.4/404 long, MAGNUM) (BRACKET - heater (15.4/404 long, MAGNUM)) | 1 | заказать |
| - | 91-8634 | BRACKET - heater (13.6/347 long, MAGNUM SL) (BRACKET - heater (13.6/347 long, MAGNUM SL)) | 1 | заказать |
| 15 | 91-8467 | BRACKET - heater (13.8/350 long, MAGNUM) (BRACKET - heater (13.8/350 long, MAGNUM)) | 2 | заказать |
| - | 91-8629 | BRACKET - heater (12.8/326 long, MAGNUM SL) (BRACKET - heater (12.8/326 long, MAGNUM SL)) | 2 | заказать |
| - | 51-1447 | SCREW - bracket (SCREW - bracket) | 11 | заказать |
| 16 | 61-2470 | VALVE - solenoid (VALVE - solenoid) | 1 | заказать |
| - | 41-5460 | COIL - valve (COIL - valve) | 1 | заказать |
| 17 | 41-4300 | SENSOR - compressor (SENSOR - compressor) | 1 | заказать |
| 18 | 102-795 | COMPRESSOR - scroll (see 180E1) (COMPRESSOR - scroll (see 180E1)) | 1 | заказать |
| 19 | NSS | BOX - control (see 235G2) (BOX - control (see 235G2)) | 1 | заказать |
| 20 | 40-782 | CABLE - compressor (CABLE - compressor) | 1 | заказать |
| 21 | 40-1044 | SENSOR - kit (ambient) (SENSOR - kit (ambient)) | 1 | заказать |
| 22 | 61-2057 | VALVE - digital (VALVE - digital) | 1 | заказать |
| - | 41-7937 | • COIL (only) (• COIL (only)) | 1 | заказать |
| 23 | 41-9220 | SENSOR - humidity (SENSOR - humidity) | 1 | заказать |
| 24 | NSS | PANEL - USDA receptacle (see 235G4/247C9) (PANEL - USDA receptacle (see 235G4/247C9)) | 1 | заказать |
| 25 | 40-1044 | SENSOR - kit (return air) (SENSOR - kit (return air)) | 1 | заказать |
| 26 | 51-270 | CONNECTOR - liquid tite (CONNECTOR - liquid tite) | 1 | заказать |
| 27 | 41-8722 | SENSOR - air supply (SENSOR - air supply) | 1 | заказать |
| 28 | 91-9754 | SENSOR - pocket (SENSOR - pocket) | 2 | заказать |
| 29 | 41-6150 | TRANSDUCER - suction (200PSI) (TRANSDUCER - suction (200PSI)) | 1 | заказать |
